Industrial UPS

Oil & Gas Sector (Jordan) – 40kVA Multi-Cabinet Industrial UPS System Design and Manufacturing

The 40kVA Industrial UPS System commissioned in Jordan in 2025 is a fully-featured uninterruptible power solution consisting of 5 independent cabinets for the harsh conditions of the oil and gas sector. It guarantees zero interruption with parallel inverter, voltage regulator bypass and STS technologies.

Project Details

In this project commissioned in 2025 for an oil and gas facility in Jordan, we designed and manufactured a 40kVA Separate-Cabinet Industrial UPS System — a fully-featured uninterruptible power supply solution designed for heavy industrial conditions requiring high safety and continuity.

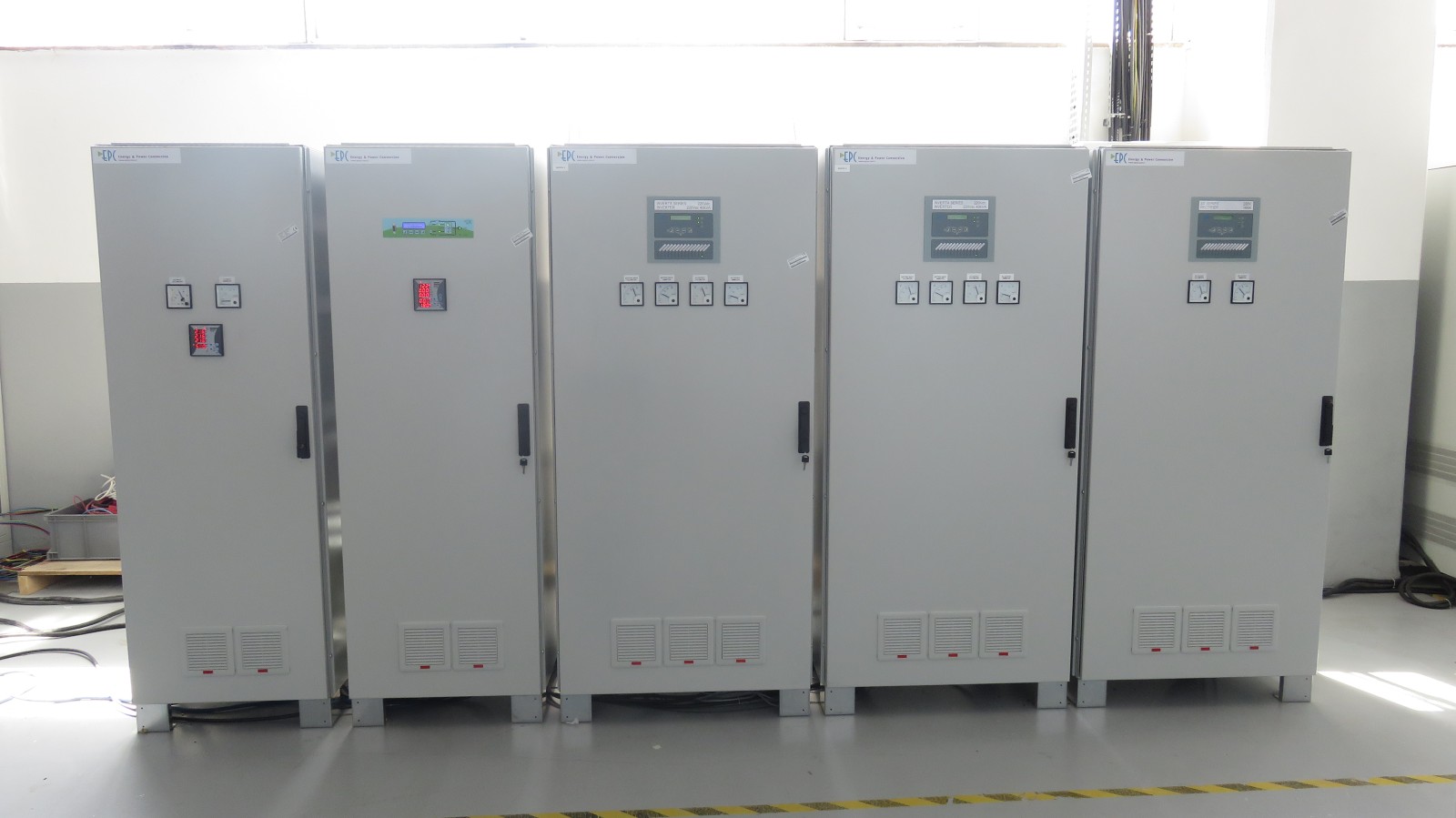

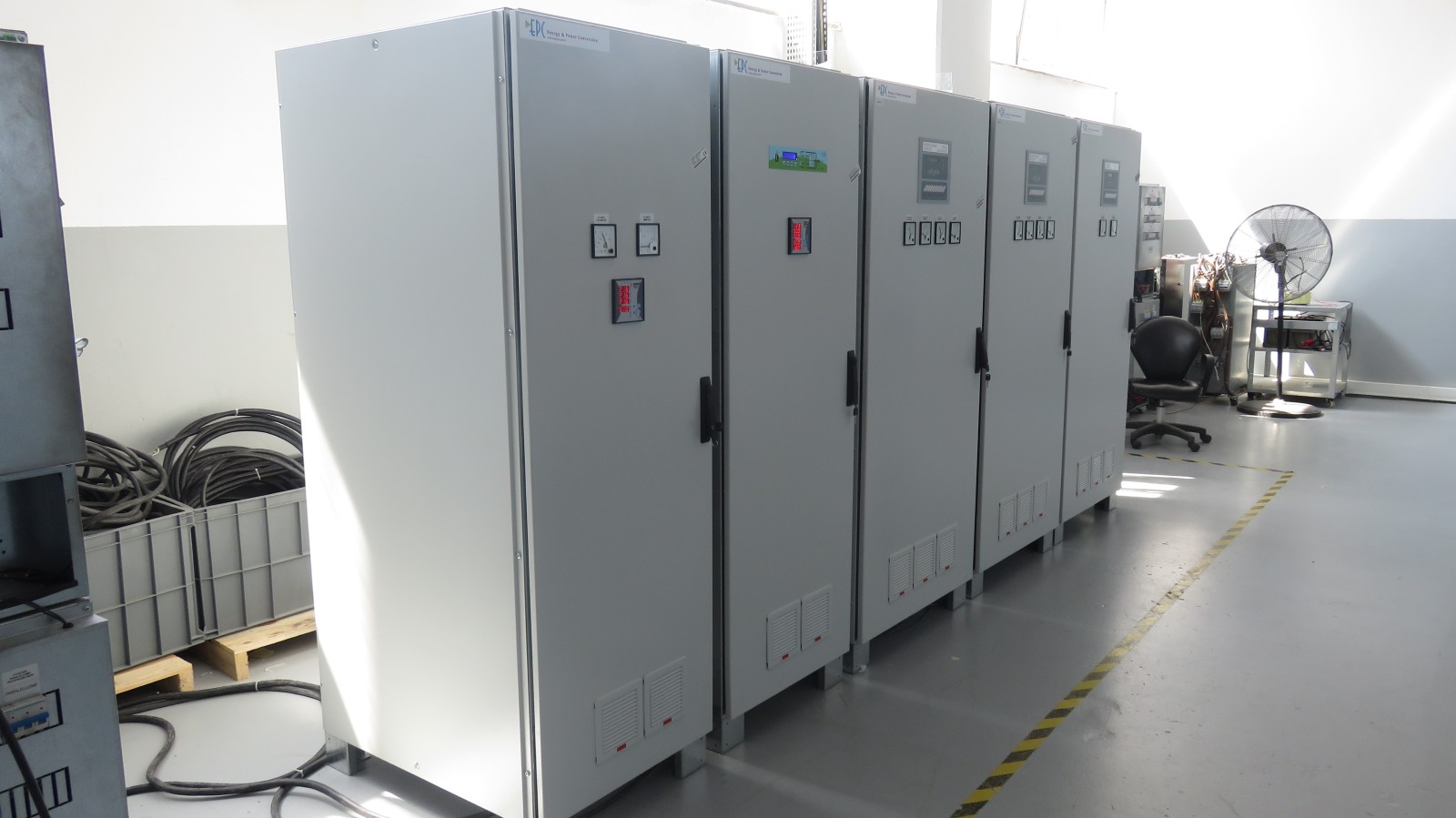

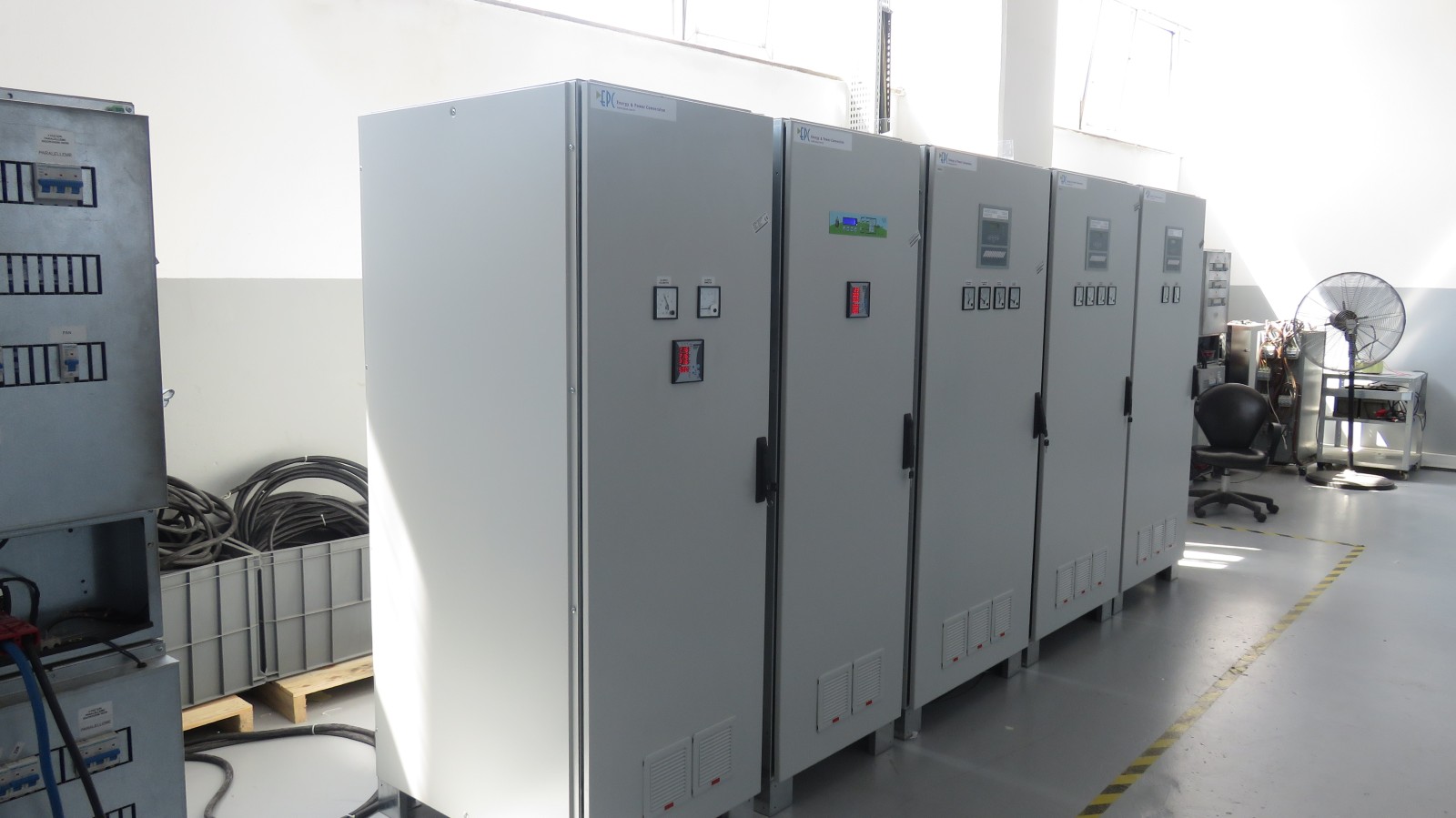

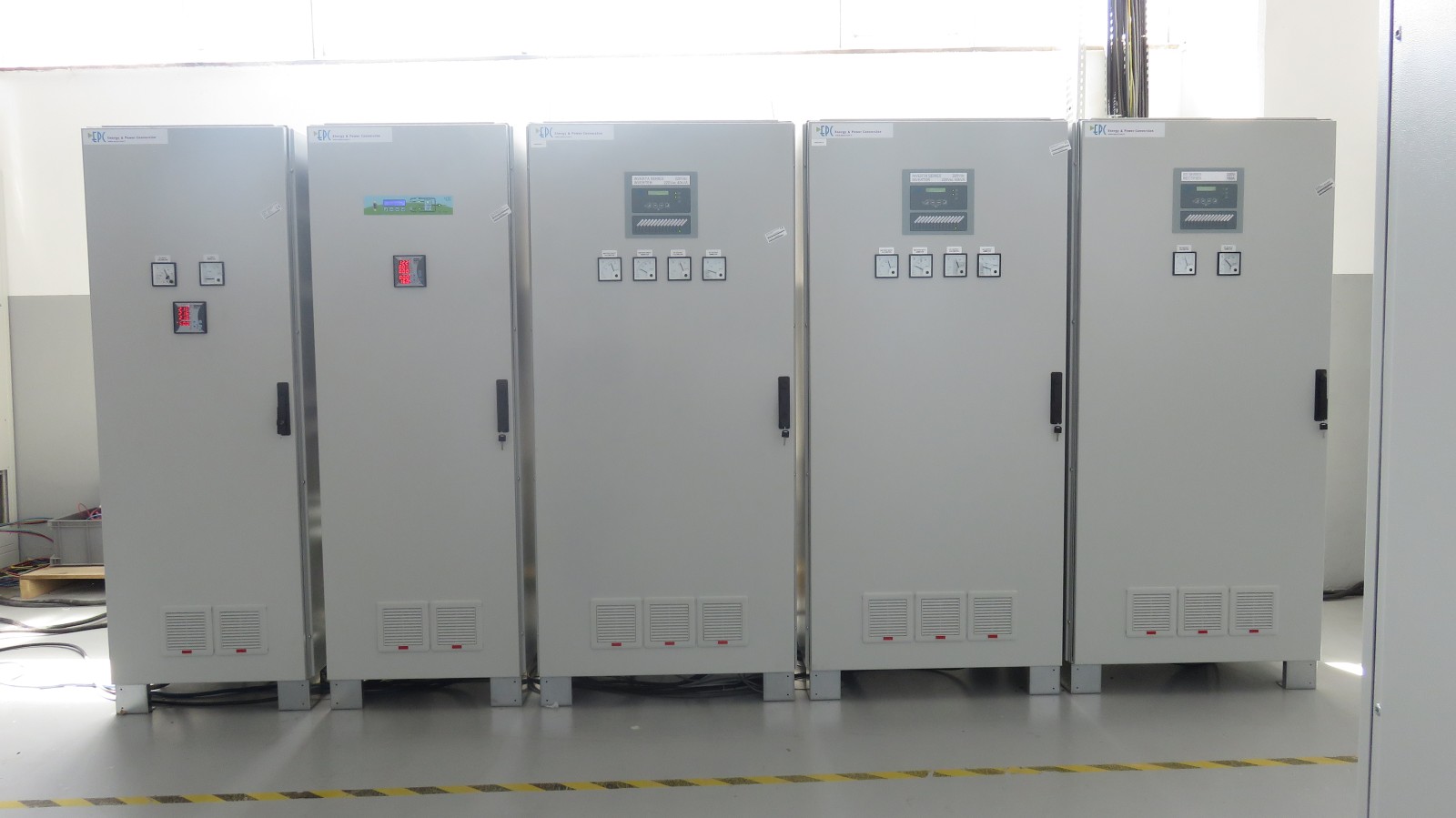

The system consists of 5 main units with separate cabinet architecture to feed critical facility loads with zero interruption and minimize failure risk:

- 1 Rectifier Cabinet
- 2 Parallel Inverter Cabinets (for redundant and balanced power sharing)
- 1 Voltage Regulator Bypass Cabinet
- 1 STS (Static Transfer Switch) Cabinet

This multi-unit independent cabinet design allows technical service teams to safely and independently carry out maintenance and repair activities on the system while continuing to feed the critical load. Parallel inverter technology maximizes load safety, while Voltage Regulator Bypass technology guarantees that the output load is fed with extreme precision without being affected by grid fluctuations, even during transitions to bypass mode.

System Technical Specifications:
- Power Capacity: 40kVA
- Input: 3x380VAC 50Hz / Output: 220VAC 50Hz
- IP42 Protection Class — RAL 7035
- Cabinet Dimensions: 800×800×1800mm

+ + + +
